Modbar
Modbar Steam Under-Counter Station
10% OFF w/Code SCA24
Regular price
$8,200.00
- Want to chat with our experts? Schedule a Consultation
- Need Financing? Apply Here
- See a better price? Apply for a Price Match
- 13-Month Warranty
The Modbar Steam delivers a minimal, modern aesthetic coupled with power and control. Recreate a traditional espresso machine with two Steam systems next to your Modbar Espresso, or set up distinct service areas to suit your workflow. Give your customers a full view of their drink being prepared, from espresso pull to latte art.
Modbar Steam Features
- Double-walled, pro-touch wand
- Chromed tap
- Ergonomic handle designed to match Espresso AV
- Custom handle finishes walnut (standard) or maple
- Omnidirectional ball fitting
- Minimal purge required with no steam valve rebuilds
- Linea-style porthole boiler sight glass
- Simple on/off switch controlled by solenoid in the module

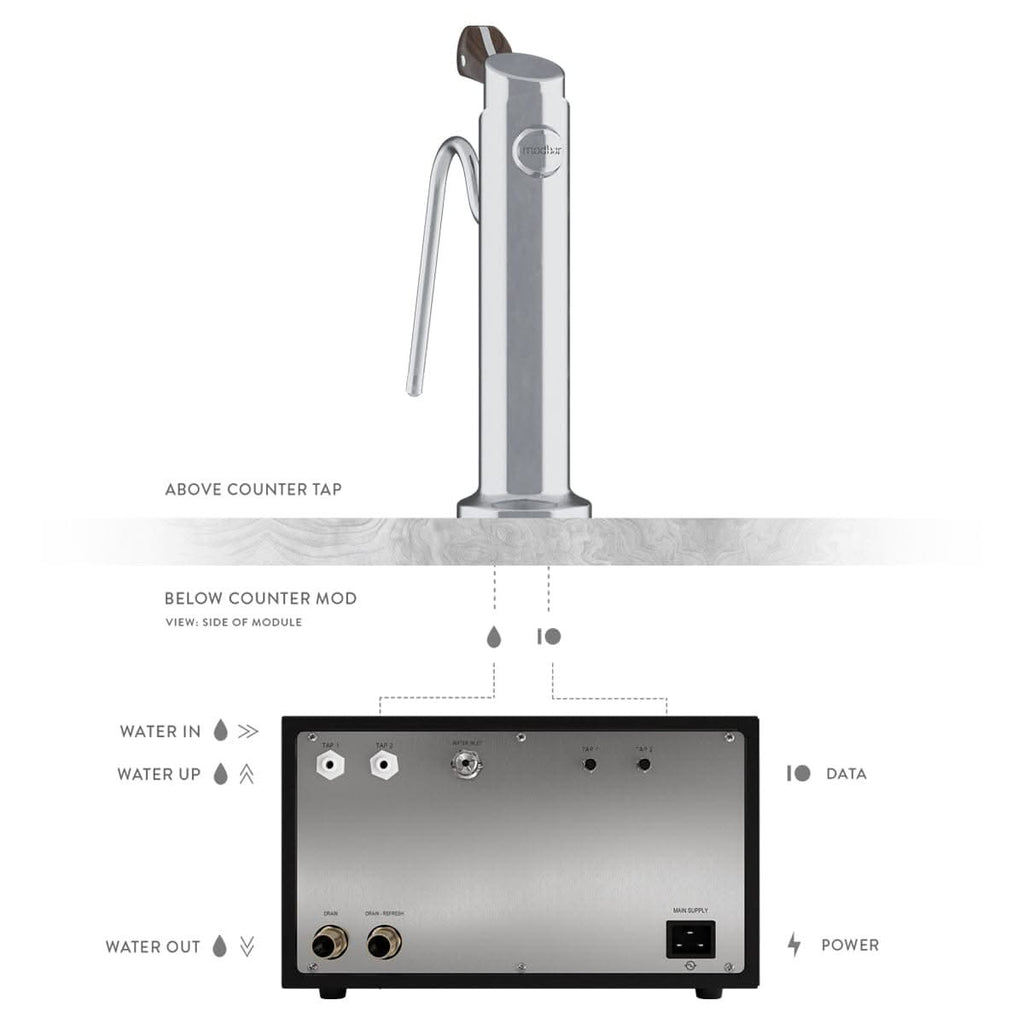

- Right-hand side connections for easy service access
What's Included

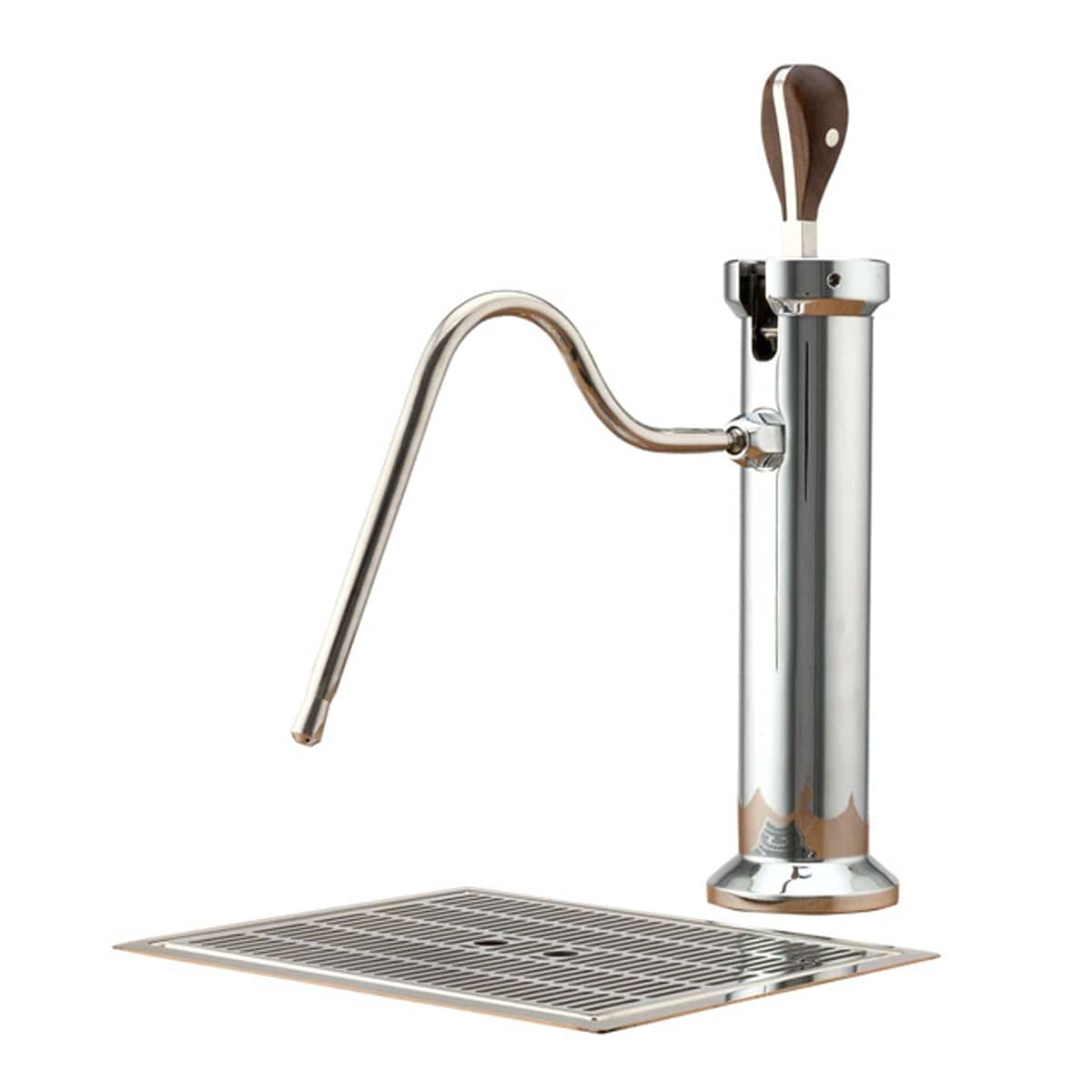

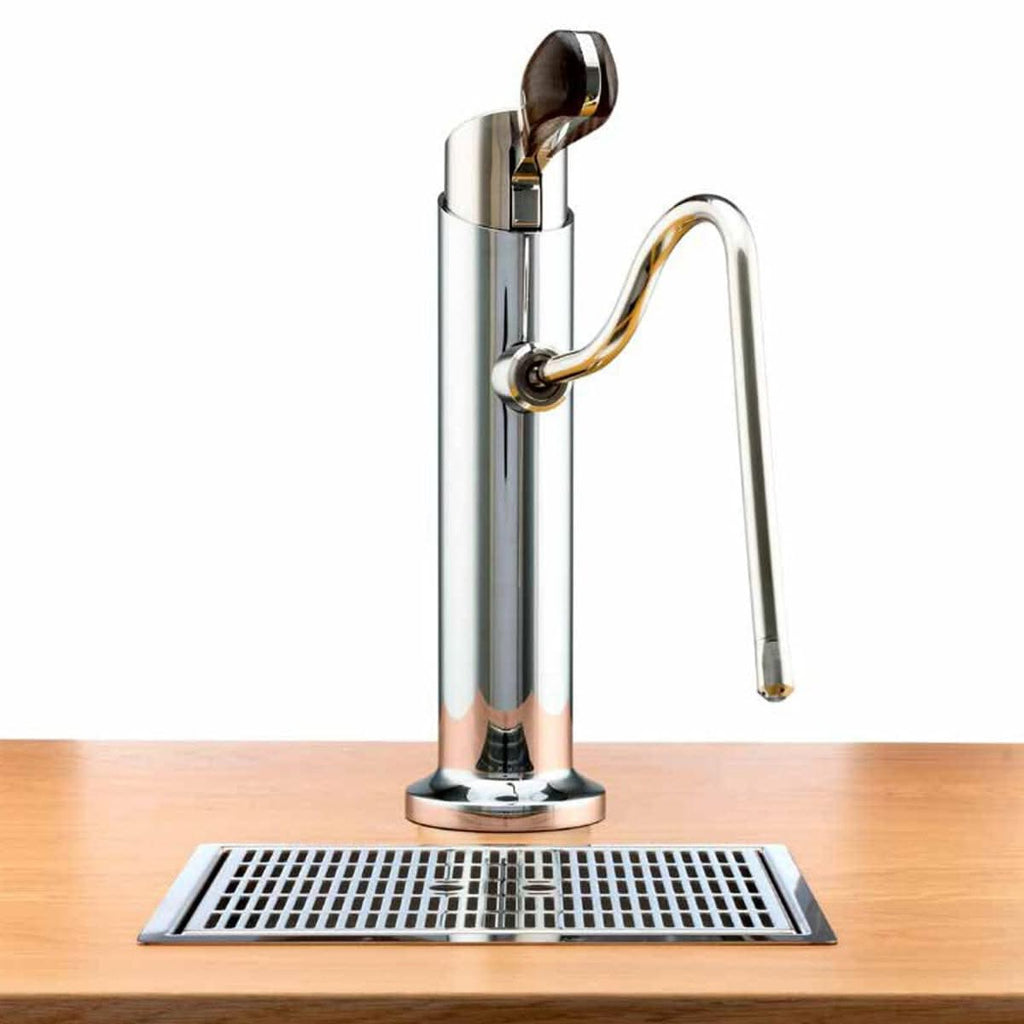

- Modbar Steam Above-Counter Tap
- Modbar Steam Below-Counter Module
- Two Steam Tips
- Drip Tray
Technical Details
- Dimensions:
- Tap: 3.5”(W) x 12.5”(H) x 11.25”(D)
- Module: 17”(W) x 8.5”(H) x 15”(D)
- Weight:
- Tap: 7.7 lbs
- Module: 40 lbs
- Module Capacity: 4.6L (Dual Boiler)
- Volts: 208V - 240V
- Amps: 14.4 (ETL) / 13 (CE)
- Element Wattage: 3310 (ETL) / 2705 (CE)
- Frequency: 50/60hz
- Certifications: ETL, CE
Documents
Warranty Information
The Modbar Steam includes a standard 13 months parts-only warranty from the original date of shipment.
