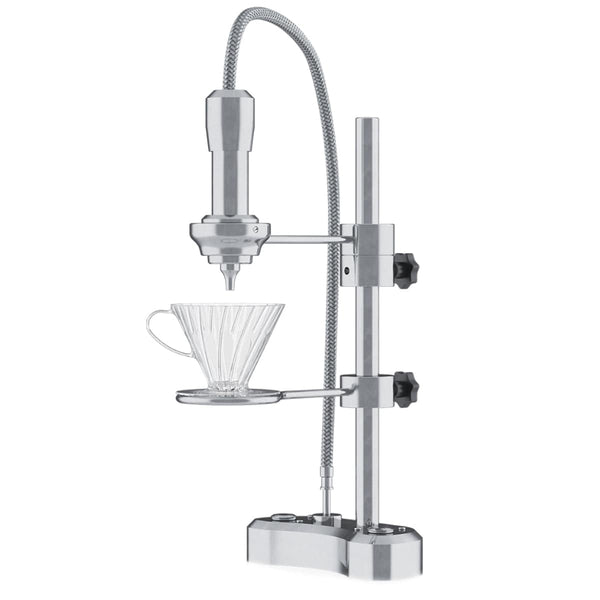

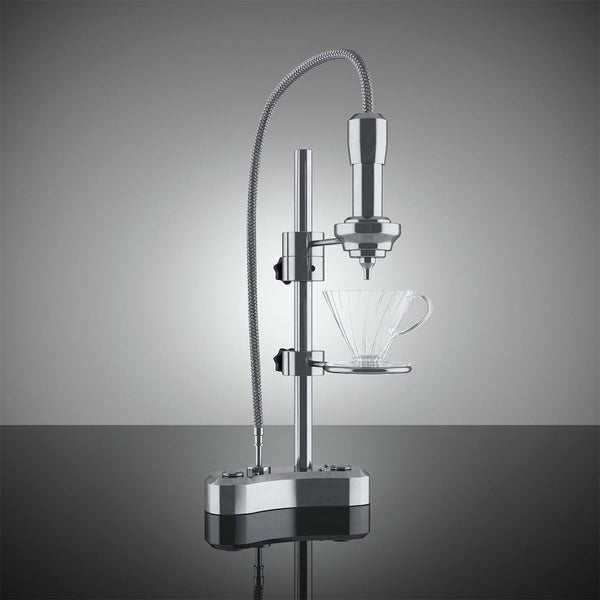

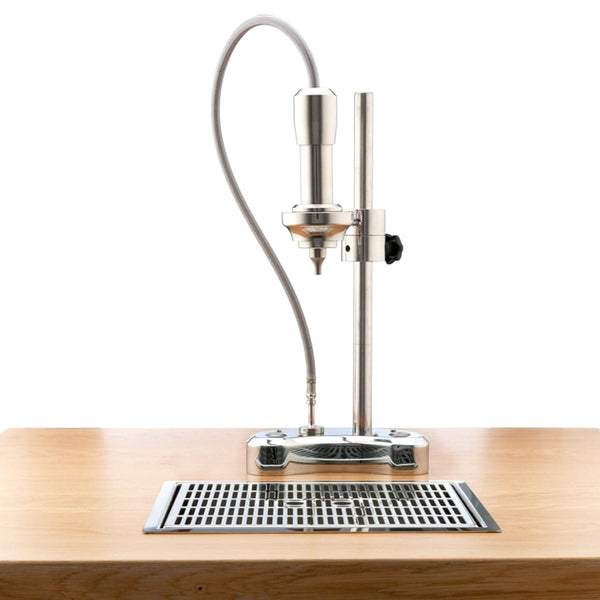

Modbar Pour-Over Under-Counter Coffee Brewing System

The Modbar Pour-Over delivers a minimal, modern aesthetic coupled with precision and control. Brew by hand using one of the two included spray tips, or teach the machine up to 25 different recipes accessible at the touch of a button. Adjust flow rate to suit your brew method and extraction preferences.

The single-hole dispenser is similar to a gooseneck kettle spout and is best suited to “hands-on” brewing. If you’ve programmed in a recipe, all you have to do is “draw” the water over the coffee grounds for each pulse until the brew is complete. No more messing around with scales and timers.

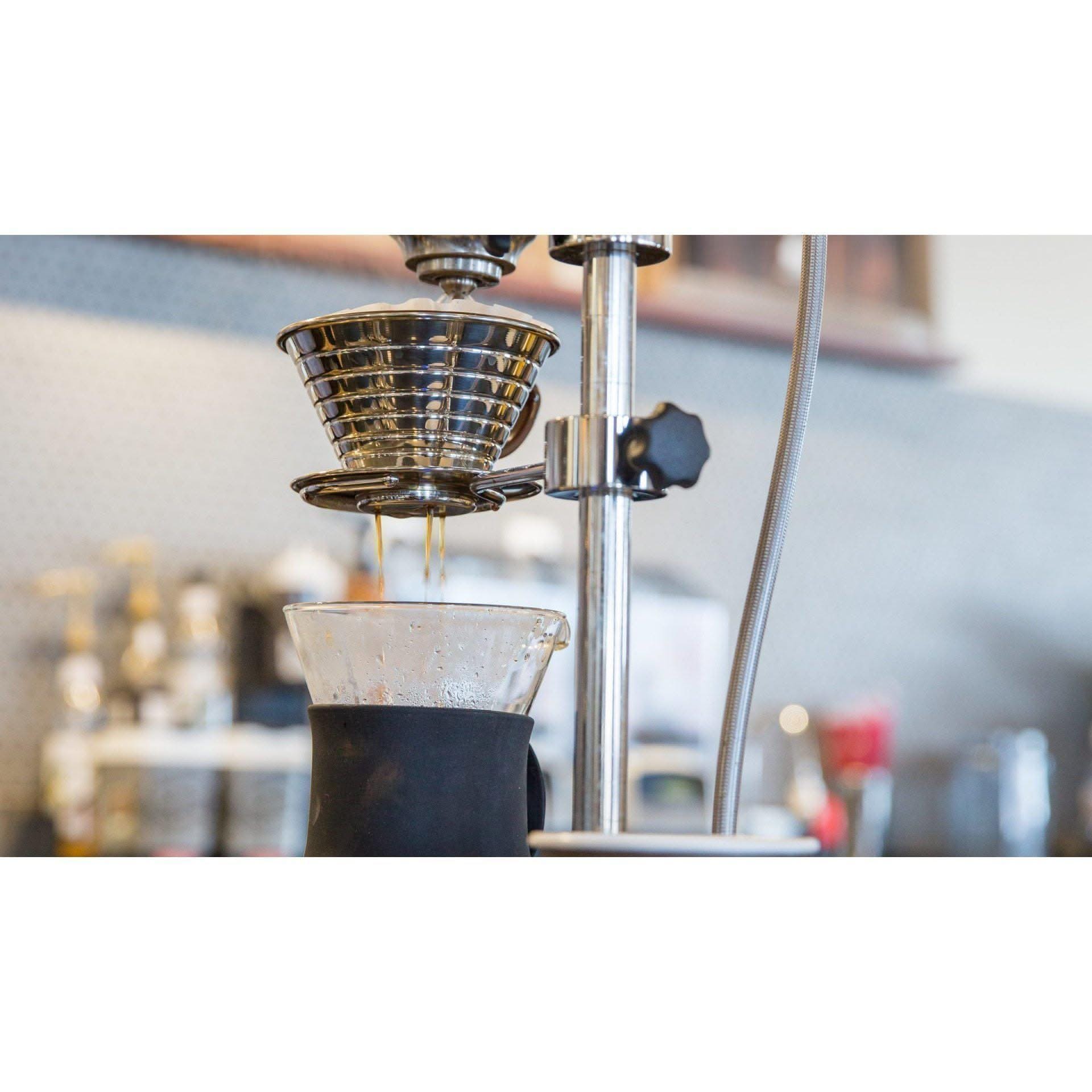

The spray nozzle dispenser emits a six-point shower of water to cover a wider portion of the coffee bed. By raising the brew wand holder up or down on the pour-over stand, you can position the wand to deliver water at the right level for your brew method. The spray nozzle paired with the right program allows the barista to begin the brew, attend to other tasks, and return to the completed cup to deliver to the customer.

• Store 25+ pour-over profiles
• Two active profiles at a time
• Automatic and manual brewing modes
• Built-in flow control valve
• Volumetric and time based dosing
• Holder ring and two spray tips included
• Unique “teaching” mode; perform your pour by hand and the system memorizes and stores it for you
• Flexible hose and wand
• Two spray patterns
• Lab mount system
• Chromed tap

Dimensions:

• Tap: 7”(W) x 17.5”(H) x 9”(D)
• Module: 16”(W) x 5.5”(H) x 14”(D)

Module Weight:

• Tap: 12 lbs
• Module: 35 lbs

Module Capacity: 1.2L (Dual Boiler)

Volts: 208V - 240V

Amps: 13 (ETL) / 11 (CE)

Element Wattage: 3000

Frequency: 50/60hz

Certifications: ETL, CE

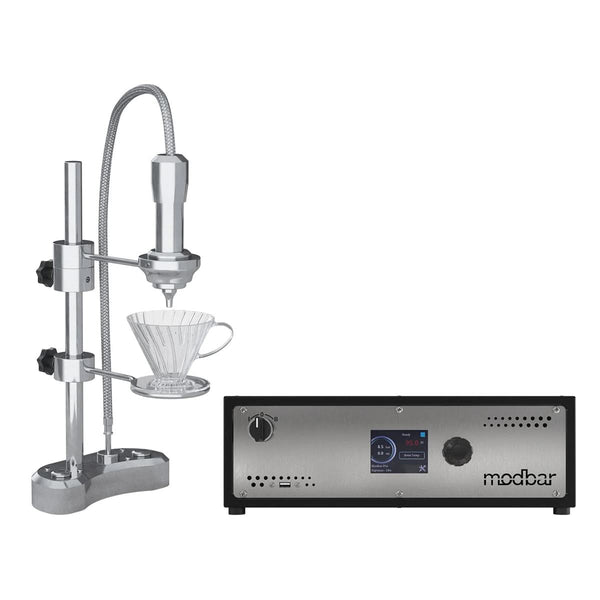

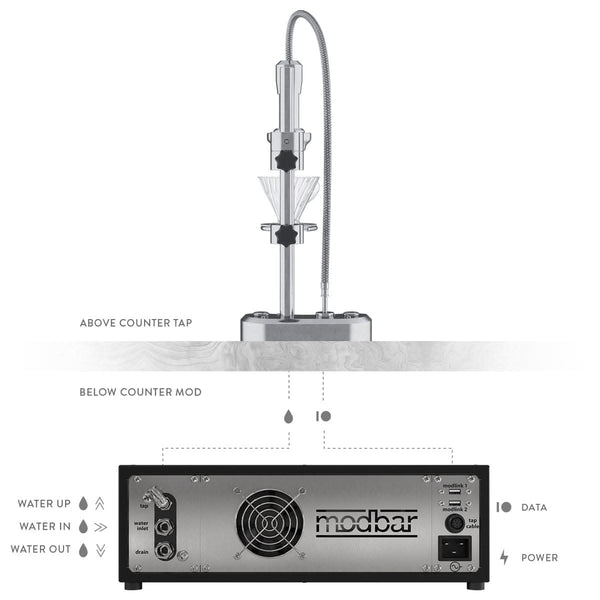

• Modbar Pour-Over Above-Counter Tap
• Modbar Pour-Over Below-Counter Module
• Two Dispensing Tips

Includes a 13-month parts & labor warranty from the original date of shipment.

• Installation Guide
• How-To Guide
• Product Brochure
