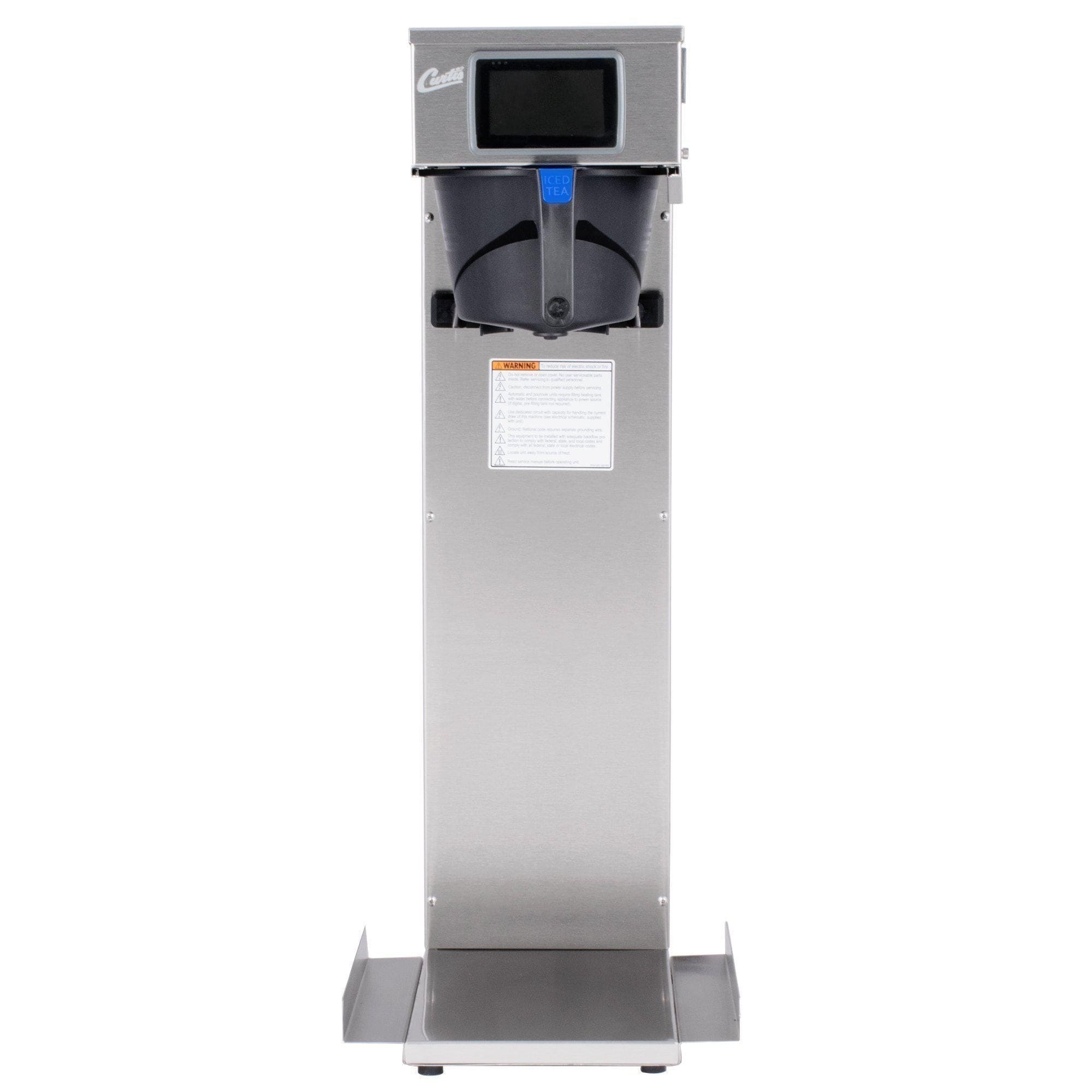

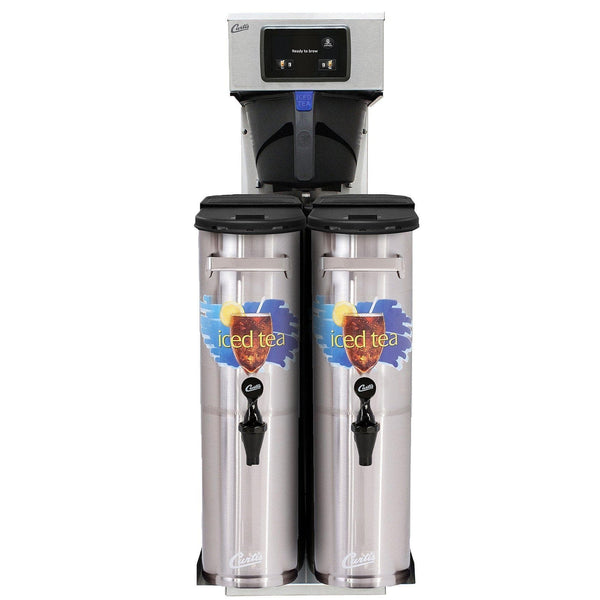

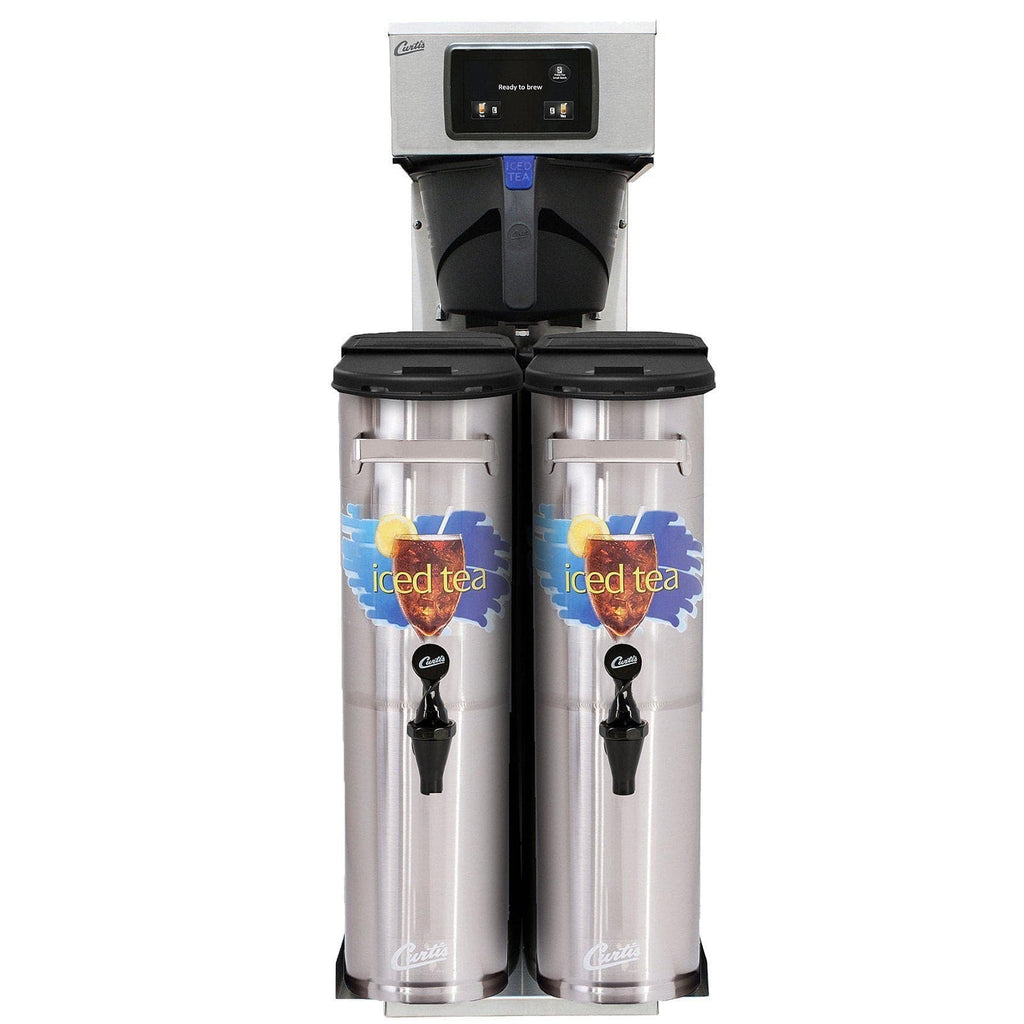

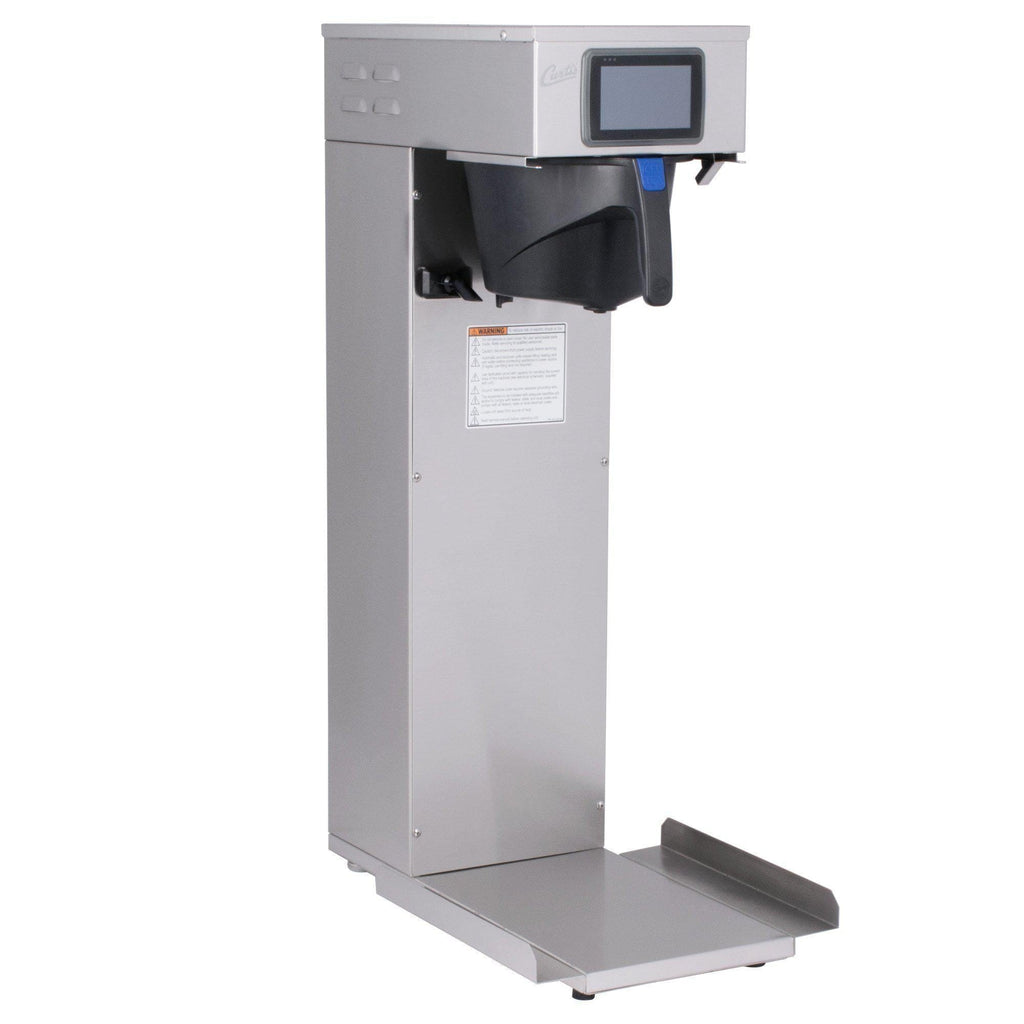

Wilbur Curtis G4 Tea Brewer with Rotating Basket

The Wilbur Curtis G4 Tea Brewer with Rotating Basket is designed to be extremely user-friendly. Its intuitive design allows the operator to easily control the temperature, time, and volume of the product, ensuring that each beverage is brewed to perfection. With its icon-driven interface, any employee can operate the brewer effortlessly. Simply tap the image of the desired beverage and your tea will begin brewing. To maintain the integrity and flavor of your beverage, the brewer is equipped with a cold water brew lock out system that prevents brewing with cold water. Additionally, for convenient servicing and maintenance, this brewer includes a built-in self diagnostics system.

Please Note: Server(s) sold separately.

• Brews 3 gallons of tea per side

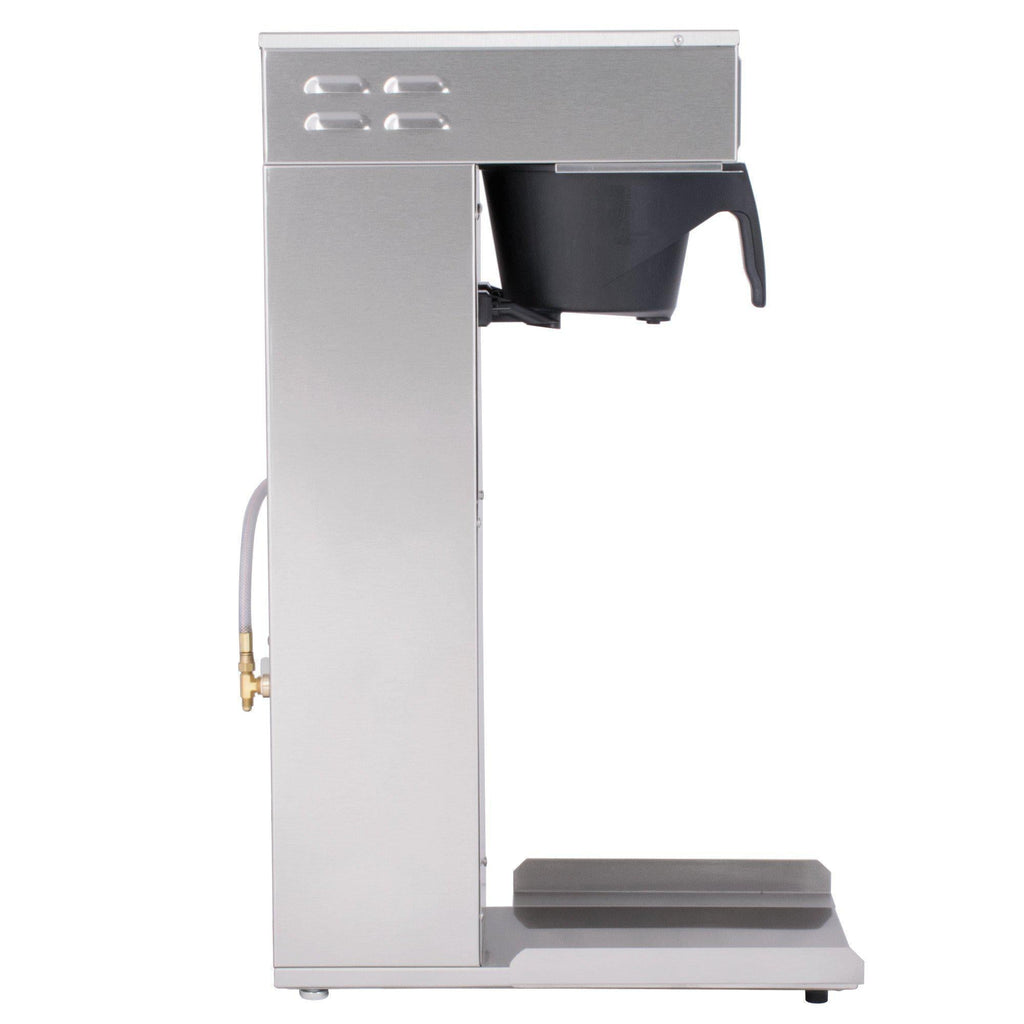

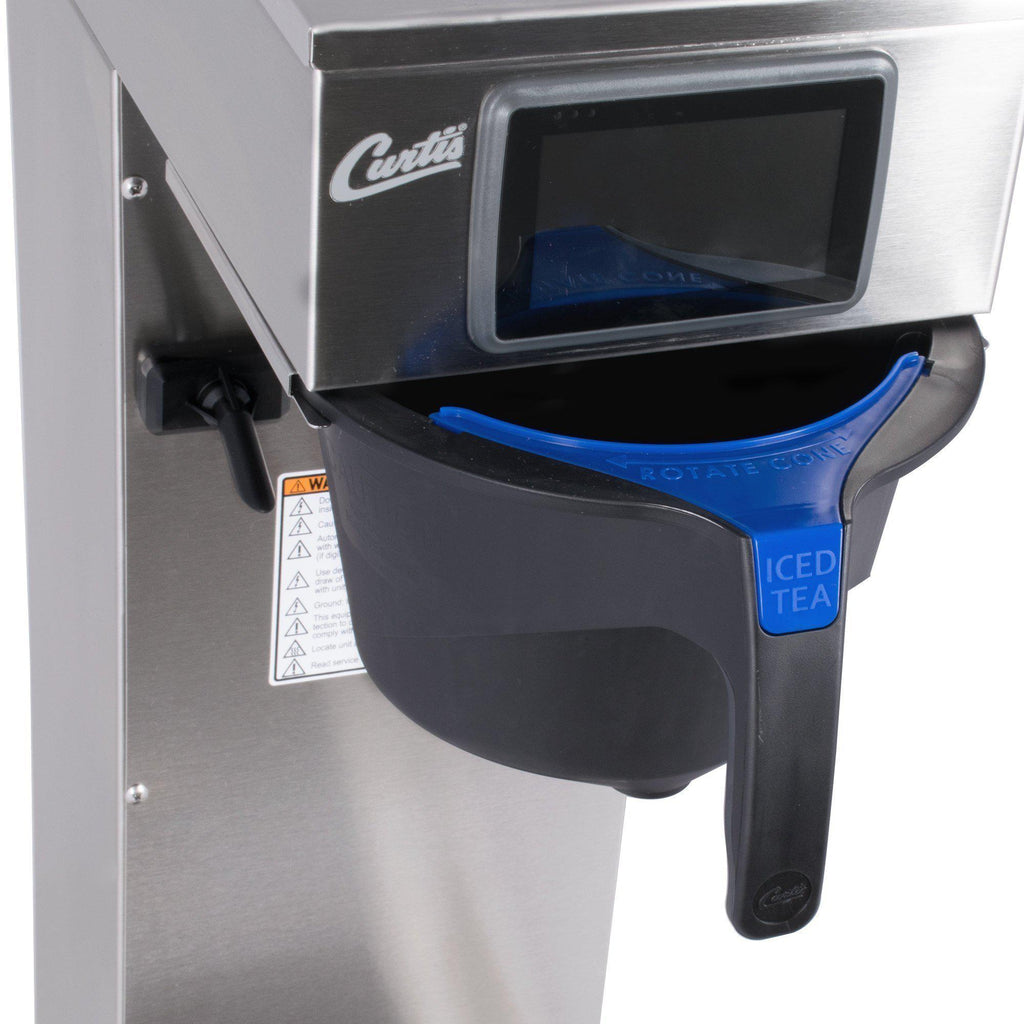

• Rotating brew basket allows fills two dispensers from one unit
• Digital control module with an icon-driven interface for intuitive use

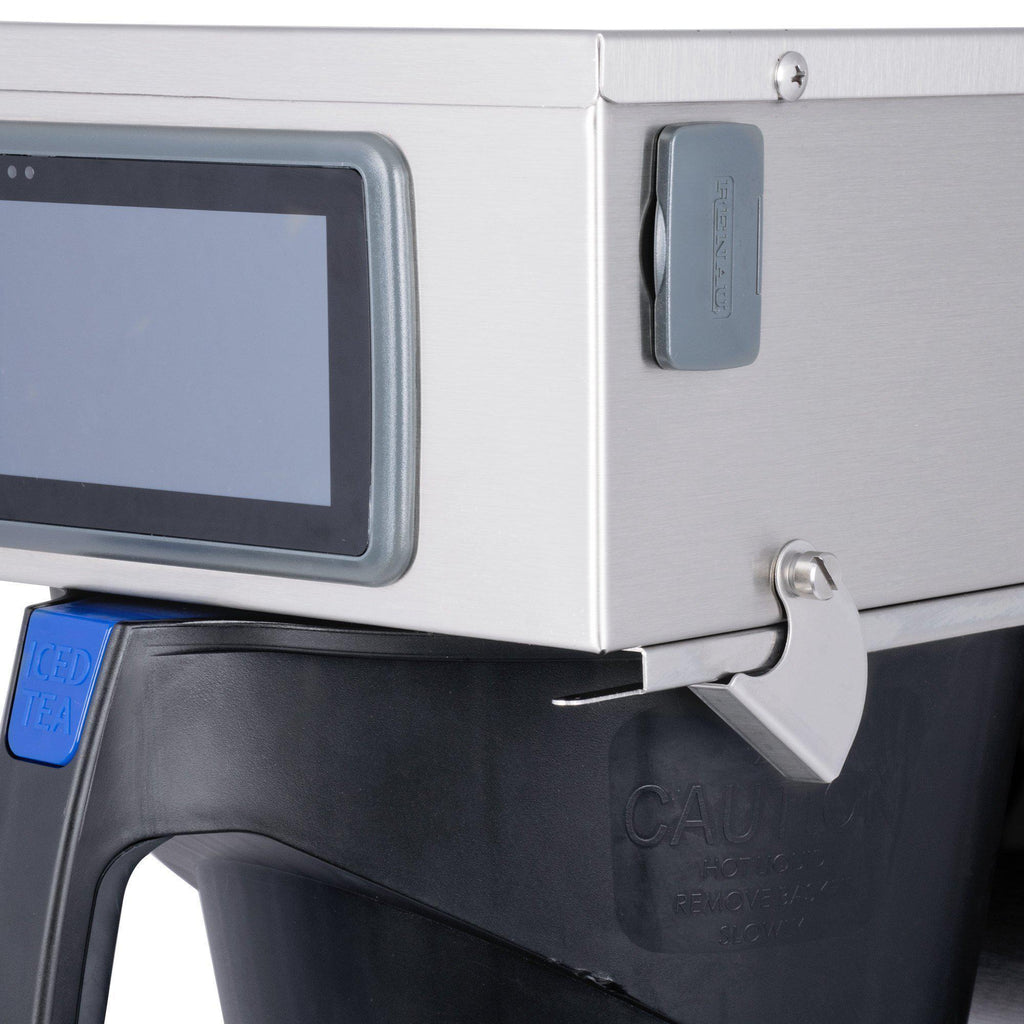

• Large 4 5/16" touchscreen is easy to see
• Adjust time, volume, temperature to accommodate specific types of brews
• Built-in self-diagnostic system for easy servicing
• Cold brew lockout prevents accidental brewing with cold water
• Dispenser sold separately

• Dimensions: 34.3”(H) x 13.2”(W) x 23”(D)
• Weight: 41 lbs
• Tank Volume: 1.6 Gallons
• Minimum Flow Rate: 1.0 GPM
• Water Pressure: 20 - 90 PSI
• Voltage: 120
• Wattage: 1650
• Amps: 13.8
• Phase: 1

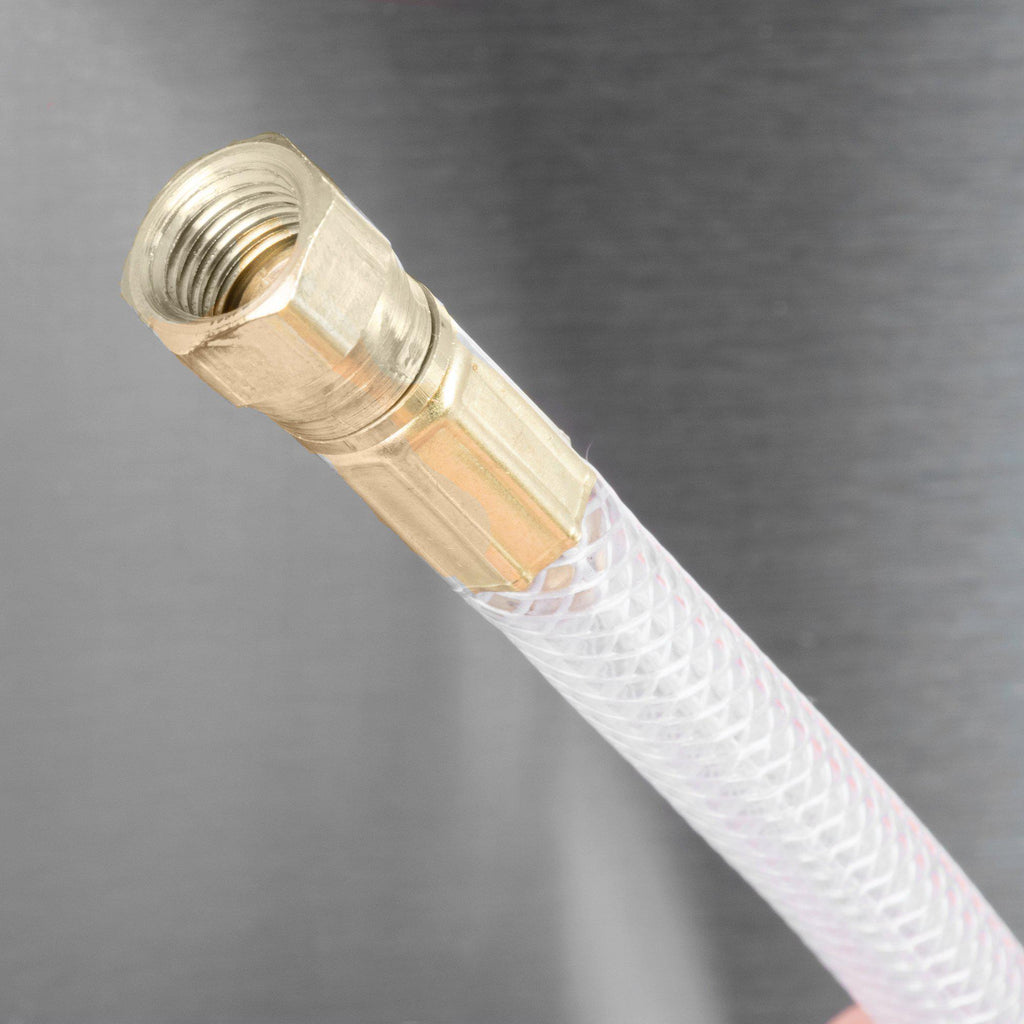

• Water Inlet Size: 1/4” Flare

All new Wilbur Curtis products come with a 2-year parts & labor warranty and a 3-year circuit board warranty.
