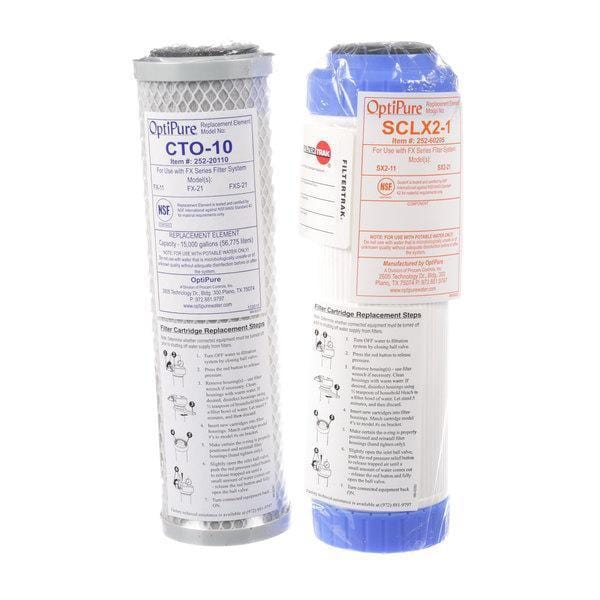

Optipure CTO-10 Carbon & SCLX2-1 ScaleX2 Filter Cartridge Kit SX21RK

• Want to chat with our experts? Schedule a Consultation
• Need Financing? Apply Here
• See a better price? Apply for a Price Match
• 90-Day Parts Warranty

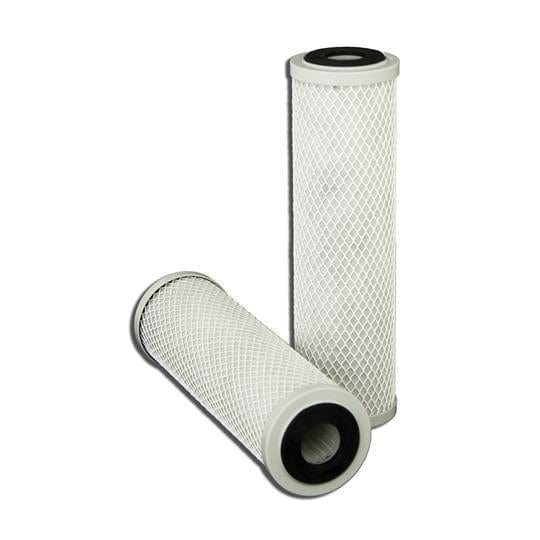

The OptiPure CTO-10 serves as a 10” drop-in replacement cartridge. It efficiently diminishes sediment to a level of 0.5-microns and effectively eliminates chlorine, taste, and odor. Boasting a flow rate of 1.5 GPM, it has the capability to purify up to 15,000 gallons of water.

The OptiPure SCLX2-1 is a 10" drop-in replacement cartridge that utilizes ScaleX2, a scale inhibition technology that eliminates the need for chemicals. By using OptiPure’s Template-Induced Crystallization, it efficiently prevents the buildup of calcium carbonate scale. The SCLX2-1 cartridge is ideal for applications requiring a flow rate of up to 1.5 GPM.

CTO-10 Cartridge Features

• Applications:
• Fountain Beverages
• Coffee
• Tea
• Water
• Improves the quality and consistency of cold and hot beverages
• Reduces maintenance frequency and cost, and extends equipment life
• Gradient-density depth filtration reduces dirt, rust, and other debris as small as 0.5-microns to assure clean, clearwater and protect solenoids, valves, and other fittings against wear and plugging
• Activated carbon filtration makes water taste great and protects equipment against corrosive chlorine
• High capacity cartridge extends filter system life reducing maintenance frequency
• Generates less waste, only the drop-in cartridge is replaced
• No discarding of metal or plastic quick-change filters
• Replacement cartridge cost per gallon is much less than proprietary quick-change filters
• NSF Certified
• Part Number: CTO-10 252-00210

SCLX2-1 Cartridge Features

• Applications:
• Boiler-Based Steam Generators
• Drop-in style cartridge for OptiPure SX2 Systems (sold separately)
• ScaleX2® achieved a 99.6% effectiveness rating when tested by an independent laboratory against the international protocol for scale prevention
• Reduces maintenance frequency and cost, and extends equipment life
• Protects boilers, steam generators, and coffee equipment against the formation and accumulation of calcium-carbonate scale
• Generates less waste, only the drop-in cartridge is replaced. No discarding of metal or plastic quick-change filters
• Replacement cartridge cost per gallon is much less than proprietary quick-change filters.
• NSF Certified
• Part Number: SCLX2-1 252-60205

CTO-10 Technical Details

• Dimensions: 9.8”(H) x 2.8”(W) x 2.8”(D)
• Weight: 0.8 lbs.
• Service Flow Rate: 1.5 GPM
• Operating Pressure Range: 10 - 125 PSI (0.7 - 8.6 bar)
• Water Temperature Range: 35 - 100ºF (2 - 38ºC)
• Capacity: 15,000 Gallons

SCLX2-1 Technical Details

• Dimensions: 9.8”(H) x 3”(W) x 3”(D)
• Weight: 5 lbs.
• Service Flow Rate: 1.5 GPM
• Operating Pressure Range: 10 - 125 PSI (0.7 - 8.6 bar)
• Water Temperature Range: 35 - 100ºF (2 - 38ºC)
• Capacity: 15,000 Gallons

Documents

• CTO-1-Product Sheet
• SCLX2-1-Product Sheet

Warranty Information

All new OptiPure products come with a 90-day parts warranty.
